DALI

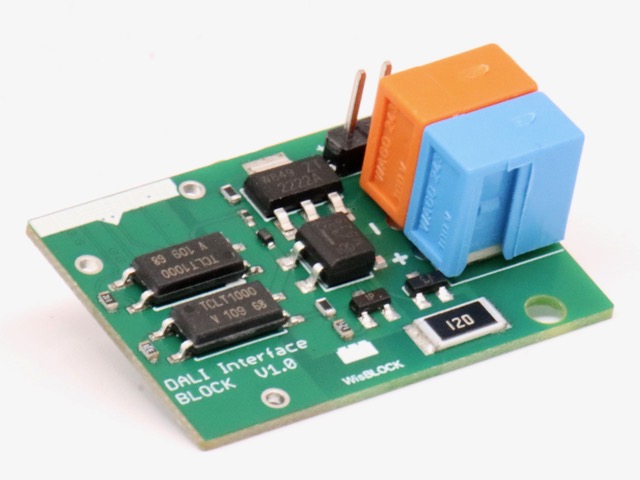

isolated DALI interface with optional bus-power supply
This interface connects to the DALI bus.
Interface
Function | Block Pin | Info |
---|---|---|
Power | 6 | 3.3V |
3,4,39,40 | GND | |
I2C Config | 19/20 | EEPROM 24c32 |
Serial port | 33/34 |
Connector
The block supports either:
- WAGO connector
- 2-pin plugable screw terminal
